What is the wear rate of cutting tools on a Profile Tenon Milling Machine?

Hey there! As a supplier of Profile Tenon Milling Machines, I often get asked about the wear rate of cutting tools on these machines. It's a crucial topic because the wear rate directly impacts the efficiency, cost, and quality of the milling process. So, let's dive right in and explore what the wear rate of cutting tools on a Profile Tenon Milling Machine is all about.

Understanding the Basics of Cutting Tool Wear

First off, we need to understand what cutting tool wear is. When a cutting tool is used on a Profile Tenon Milling Machine, it comes into contact with the workpiece. The friction and forces generated during the cutting process cause the tool to gradually lose its sharpness and material. This loss is what we call wear.

There are different types of wear that can occur. Abrasive wear is one of the most common types. It happens when hard particles in the workpiece material rub against the cutting edge of the tool, gradually wearing it down. Another type is adhesive wear, which occurs when the workpiece material sticks to the cutting tool and then gets torn away, taking some of the tool material with it.

Factors Affecting the Wear Rate

Now, let's talk about the factors that affect the wear rate of cutting tools on a Profile Tenon Milling Machine.

Workpiece Material

The type of material you're milling plays a huge role. For example, if you're milling aluminum, the wear rate might be different compared to milling steel. Aluminum is generally a softer material, so it might cause less wear on the cutting tool. On the other hand, steel is harder and can be more abrasive, leading to a higher wear rate. You can check out our Aluminum End Milling Machine for more info on milling aluminum.

Cutting Parameters

The cutting parameters, such as cutting speed, feed rate, and depth of cut, also have a significant impact on the wear rate. If you set the cutting speed too high, the tool will heat up more, which can accelerate wear. Similarly, a high feed rate or a large depth of cut can put more stress on the tool, leading to faster wear.

Tool Material and Geometry

The material and geometry of the cutting tool itself are important factors. High - speed steel (HSS) tools are less expensive but may wear out faster compared to carbide tools. Carbide tools are more durable and can withstand higher cutting speeds and temperatures. The geometry of the tool, such as the rake angle and clearance angle, also affects how the tool cuts and how much wear it experiences.

Machine Condition

The condition of the Profile Tenon Milling Machine matters too. A machine that is not properly maintained, with loose components or poor alignment, can cause uneven cutting forces on the tool, leading to increased wear.

Measuring the Wear Rate

So, how do we measure the wear rate of cutting tools? One common way is to measure the flank wear of the tool. The flank wear is the wear that occurs on the side of the cutting tool. You can use a microscope or a tool wear measurement device to measure the width of the flank wear land.

Another way is to monitor the cutting forces. As the tool wears, the cutting forces tend to increase. By using a force sensor on the machine, you can detect these changes and estimate the wear rate.

Controlling the Wear Rate

Now that we know what affects the wear rate, how can we control it?

Optimize Cutting Parameters

As mentioned earlier, adjusting the cutting parameters can help control the wear rate. You can use cutting parameter optimization software or follow the manufacturer's recommendations to find the optimal combination of cutting speed, feed rate, and depth of cut for your specific workpiece and tool.

Use the Right Tool

Choosing the right cutting tool for the job is crucial. Consider the workpiece material, the required cutting quality, and the production volume. For example, if you're doing high - volume production of aluminum profiles, our Aluminum Profile CNC Tenon Milling Machine with the appropriate carbide tools might be a great choice.

Maintain the Machine

Regular maintenance of the Profile Tenon Milling Machine is essential. This includes cleaning the machine, lubricating the moving parts, and checking the alignment. A well - maintained machine will ensure that the cutting forces are evenly distributed on the tool, reducing wear.

Impact of Wear Rate on Production

The wear rate of cutting tools has a significant impact on production. If the wear rate is too high, you'll have to replace the tools more frequently, which increases the cost of production. It also leads to downtime as you stop the machine to change the tools.

On the other hand, if you can control the wear rate effectively, you can increase the tool life, reduce costs, and improve the overall efficiency of the production process. You'll also get better - quality parts because a sharp tool cuts more accurately.

Real - World Examples

Let me share a real - world example. One of our customers was using a Profile Tenon Milling Machine to mill steel profiles. They were experiencing a high wear rate of their HSS cutting tools. After we analyzed their process, we recommended switching to carbide tools and optimizing the cutting parameters. They also improved the maintenance of their machine. As a result, the tool life increased by almost 50%, and they saw a significant reduction in production costs.

Conclusion

In conclusion, the wear rate of cutting tools on a Profile Tenon Milling Machine is influenced by many factors, including workpiece material, cutting parameters, tool material and geometry, and machine condition. By understanding these factors, measuring the wear rate, and taking steps to control it, you can improve the efficiency and cost - effectiveness of your milling process.

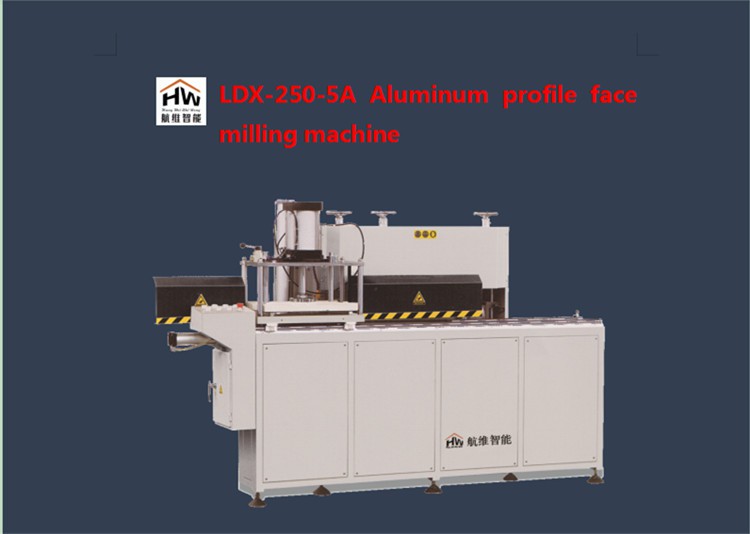

If you're interested in learning more about our Profile Tenon Milling Machines or have questions about cutting tool wear, feel free to reach out to us. We're here to help you optimize your production process and get the most out of your machines. Whether you need an Aluminum End Milling Machine, an Aluminum Profile CNC Tenon Milling Machine, or a Profile End Milling Machine, we've got you covered. Contact us today to start a discussion about your specific needs and how we can help you achieve better results.

References

• "Metal Cutting Principles" by Paul K. Wright and David A. Dewhurst
• "Manufacturing Engineering and Technology" by S. Kalpakjian and S. R. Schmid
